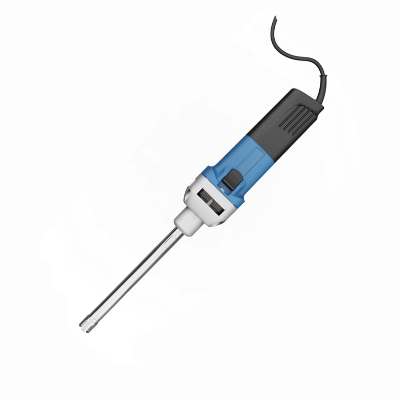

High Shear Homogenizer 핸들형 호모게나이저 / TH500

by 이노진텍 2024. 8. 5.





TH500 is a high-performance high-shear homogenizer. 550W high power can handle a variety of applications safely and quickly, from sample preparation to product formula testing. The motor drives the dispersion head to rotate at high speed during operation, and the sample is homogenized or dispersed in the gap between the stator and the rotor. It usually takes only a short time to complete.

Applications

Widely applied for histocyte lysis, cell homogenization, emulsion, nanometer scale dispersion process in biology, pharmaceutical, genetic and pathology study, diary product or fruit homogenization, production of fragrance, cosmetics, textile auxiliary, food, ink, paints, asphalt, fine chemicals, agricultural chemicals, and analysis in mineral exploration, environmental protection and energy resource exploration.

- Routine homogenization, emulsion,depolymerization, dispersion application

- Disperse substance to form suspension and emulsion

- Disperse pigment and resin

- Disperse animal or human tissue into various solution

- Facilitate the dissolve of solid substances

- Sample preparation for quality control test

- Animal or plant cell lysis

- Emulsion, cream cosmetics and food formulation study

- Extraction of active pharmaceutical ingredientfrom pills and tablet

Specification

- High quality 316L stainless steel, corrosion/ high temperature resistance

- Rotor with simple design can be dismounted, cleaned, and applicable for sample with viscosity up to 10000 mPa·s

- Replaceable rotors and stators sharing the same shaft, cost-effective

- Automatic overload protection mechanism maximizes the smooth motor start, stable acceleration without spillage risk

Model
TH500
Power
550W
Speed range
10000~30000rpm
Max linear velocity
22.7~36m/s
Speed level
6 level
Dispersion probe material
SS316L stainless steel, PTFE
Sample capacity
10~40000mL
Max viscosity
10000mPas
Dimension (with workbench)
L350×W300×H600mm
Weight
1.7kg
Power supply
110V/220V;50/60Hz





Dispersion probe Select

Material : All dispersion head components are made of high quality; 316L stainless steel to ensure the mechanical performance while rotating at high speed of 30000rpm;

Bearing : Made of excellent material the bearing is sturdy, durable and corrosion resistance. lts mechanical performance and chemical characteristics are stable;

Easy to clean : The dispersion head is designed to be easily dismantled and thus cleaned. The components can be cleaned manually or automatically, and can be autoclaved. Even the precision components can peremoved to clean.
